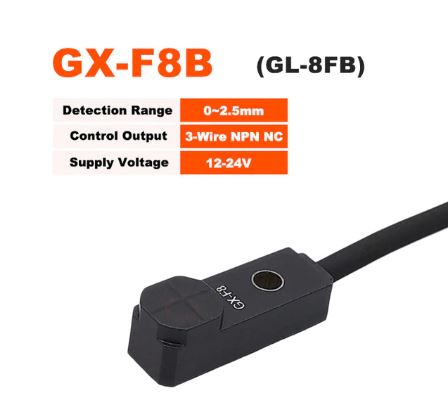

Inductive Proximity Sensor – Top Sensing – N/C

Dimensions: Specifications: Max. Op. Distance: 2.5mm Stable sensing distance: 0 to 1.8 mm Hysteresis: 20% or less of operation distance Supply Voltage: 12 to  24V DC -10% Current consumption: 15mA or less Maximum sink current: 100mA Short-circuit protection: Incorporated Max. response frequency: 1 kHz Operation indicator: Orange LED lights up when the output is ON Protection: IP67 Operating temperature: -25 to 70°C Cable: 3-core cable 0.15mm2 x 1m Material: Polyalytate Wiring diagram: Pro Tips: You can add a special touch organising the cable using a V-Slot Cover to avoid loose cables in your application. See the  DATASHEET to best position the sensor to avoid interference caused by metals nearby. Use an M3X10mm button head screw and a Drop in Tee nut to best mount the Inductive Proximity Sensor on Aluminium extrusions.
