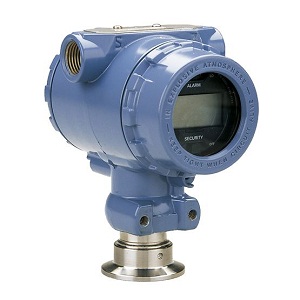

Rosemount 2090F Hygienic Pressure Transmitter

Rosemount 2090F Hygienic Pressure Transmitter Product Name: Rosemount 2090F Hygienic Pressure Transmitter Manufacturer: Emerson Automation Solutions Model Number: 2090F Brand: Rosemount Description of Rosemount 2090F Pressure Transmitter The Rosemount 2090F Hygienic Pressure Transmitter is a high-performance, sanitary pressure sensor designed for demanding hygienic environments. It delivers accurate and reliable pressure measurement in fluid processing applications where cleanliness, precision, and regulatory compliance are critical — such as food & beverage, pharmaceutical, biotechnology, and dairy industries. Key Features of Rosemount 2090F Pressure Transmitter Hygienic Design: 3A/ISO compliant sanitary fittings and smooth surface finish suitable for CIP/SIP cleaning High Accuracy: Stable and repeatable pressure measurements Robust Construction: Corrosion-resistant stainless steel wetted parts Smart Diagnostics: Self-monitoring and alert capabilities (if equipped with HART/advanced protocols) Easy Integration: Compatible with PLC/DCS systems Wide Pressure Range: Suitable for low to high pressure applications Technical Specifications of Rosemount 2090F Pressure Transmitter Specification Details Model Rosemount 2090F Manufacturer Part Number (Specify exact P/N based on configuration) Measurement Type Gauge / Absolute / Differential (select based on application) Pressure Range (e.g., 0–100 psi, 0–250 psi, etc., as specified) Accuracy ±0.075% to ±0.25% of span (depending on range and options) Output Signal 4–20 mA with HART (digital communication optional) Supply Voltage 10–30 V DC Media Wetted Materials 316L Stainless Steel Sanitary Connection Tri-Clamp / Dairy clamp / ISO / 3-A compliant Surface Finish Ra ≤ 32 µinch (sanitary grade) Temperature Limits Ambient: -40°C to 85°C (typical)*; Process: Up to 120°C (depending on diaphragm seal & construction) Process Compatibility Compatible with liquids, slurries, and gases used in hygienic processing Environmental Protection IP66/67 or higher Electrical Connection M12 connector / DIN / Cable (specify per order) Approvals 3-A, EHEDG, CE, SIL (option dependent)   Hygienic Design & Compliance Sanitary process connections designed for clean-in-place (CIP) and sterilize-in-place (SIP) procedures Smooth surface finish minimizes bacterial harborage points Complies with industry standards such as: 3-A Sanitary Standards ISO Hygienic Requirements EHEDG recommended practice Operating Principle The Rosemount 2090F uses a piezoresistive sensing element isolated by a diaphragm exposed to the process fluid. Pressure variation causes diaphragm deflection, which is converted to a corresponding electrical signal. Smart transmitters provide digital diagnostics via HART. Typical Applications Food processing (dairy, beverages) Pharmaceutical and biotechnology Bioprocessing reactors and fermenters CIP/SIP pressure monitoring Chemical dosing and sanitary fluid handling Installation Notes Mount in a location with minimal vibration and mechanical stress Ensure compatible sanitary fittings and torque-tightened clamps Purge and flush lines before installation Confirm proper grounding and shielding for signal integrity Diagnostics & Communication HART Protocol (if enabled) for: Remote calibration Status and health diagnostics Zero/span adjustments Optional digital interfaces for enhanced monitoring Environmental & Safety Ratings Designed for harsh industrial environments Dust and moisture protection (IP66/67) Resistant to wash-down environments Safety certifications available upon request Accessories & Options Calibration certificates Sanitary ferrules and clamps Surge protection modules Remote seals and capillaries (for high temp or viscous media) Mounting brackets and hardware Packaging & Shipping Individually boxed with protective foam Includes product label and serial number Manual and compliance documents included Warranty Standard manufacturer warranty per Emerson / Rosemount terms (typically 12 months from installation or commissioning, whichever is earlier).
