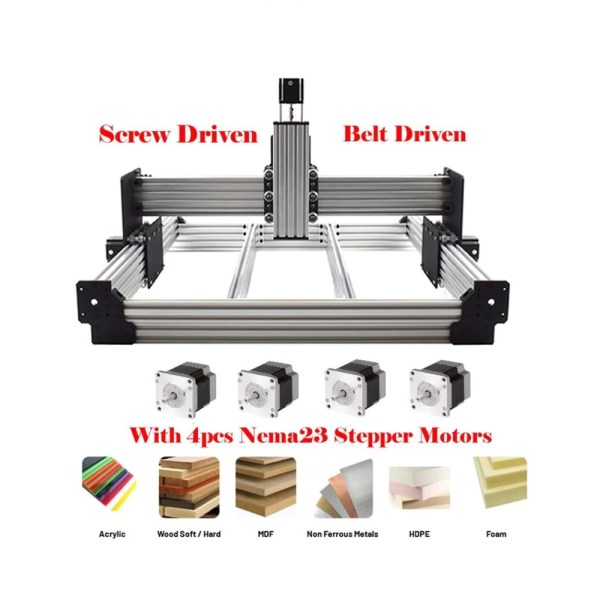

Screw Driven WorkBee Mechanical Kit 1500x1500mm – Silver with Nema 23 stepper Motors

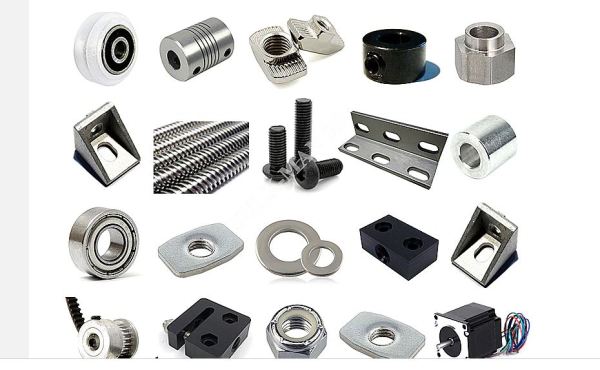

Description WorkBee CNC Router Mechanical  Kit , Screw Driven with Nema 23 stpepper Motors  Introduction The CNC router is suitable for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes. Compatible Material for Cutting/Milling/Engraving: Aluminium / Hard Wood / Soft Wood / Oak / Plexi Glass / Delrin / HDPE / Foam Model and Technical Parameters Frame Size:1500 X 1500 mm . Working area Approximate :1300 X 1270mm Motion Drive System – ACME Lead Screws Linear Guides -Polycarbonate wheels on anodised C-Beam V-Slot Extrusion. Motors – NEMA23 175oz Stepper Motors (X, Y & Z) Accuracy – 0.05 – 0.10mm (Screw Driven) Note – Maximum recommended speed for Lead Screws 1000mm or greater is 400RPM. Packing list: 1 x CNC Router frame with all accessories  4 x Nema23 Stepper Motors 1 x PDF Assembly Manual is available by email If you require Solid frame to keep your machine on top please click  Here.  Please let us know if you have any question   Related
